M113A3 + Add-on armor and maybe slat
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Saturday, July 28, 2007 - 09:50 AM GMT+7
Dear All
Well since the new blog feature is active, I would like to share with you my new build. It will be a M113A3 with add-on armour for sure and maybe slat.
Starting kit is the Tamiya M113A2 turn into a M113A3 with the help of Vodnik useful article .

And the following picture as a source of inspiration:

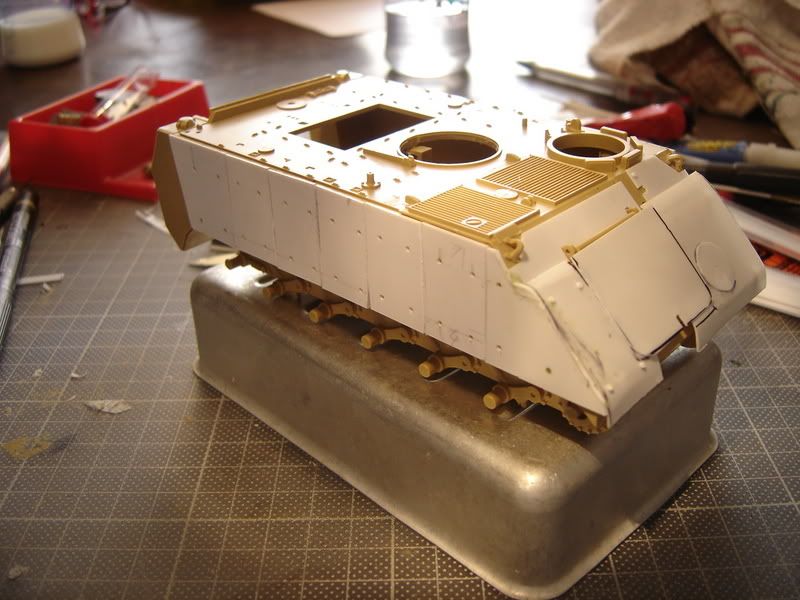

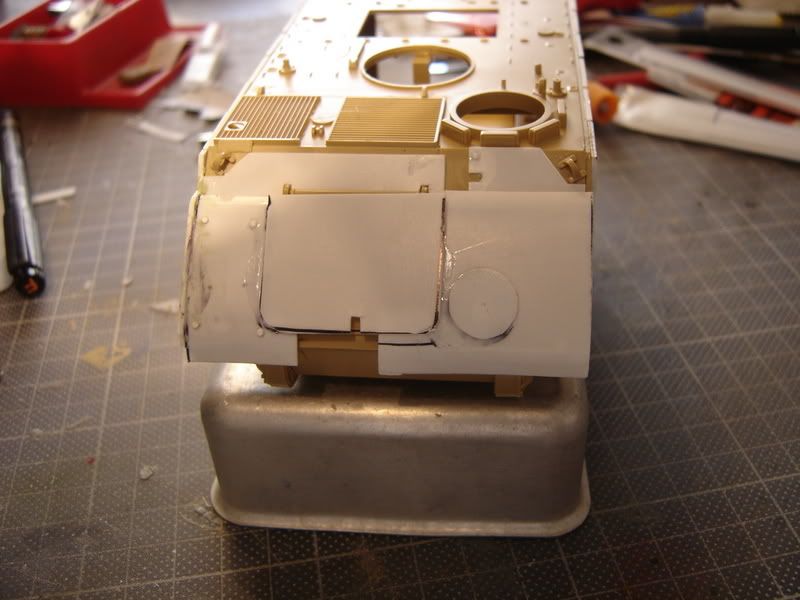

Here is the side and the front progress pictures:







Comments welcome

Stay tune
Seb
ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,065 posts
Armorama: 1,662 posts
Posted: Saturday, July 28, 2007 - 05:22 PM GMT+7
This is looking good so far. Will keep checking this blog.
Erik67
Visit this Community
Buskerud, Norway
Joined: July 31, 2005
KitMaker: 1,870 posts
Armorama: 1,422 posts
Posted: Saturday, July 28, 2007 - 05:49 PM GMT+7
Looks like a good start. Good luck on your project.

Erik
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Monday, July 30, 2007 - 01:44 PM GMT+7
So here is the M113A3 complete with the add on armour, now the fun part will start the slat armor, well it looks like more than a bird cage than slat, on the picture below you can see that it is wires connected to the frame



So here is the M113A3, if I missed something please let me know












210cav
Visit this Community
Virginia, United States
Joined: February 05, 2002
KitMaker: 6,095 posts
Armorama: 4,522 posts
Posted: Monday, July 30, 2007 - 02:00 PM GMT+7
Sebastien-- cool! Nice workmanship. Continue to build and keep us informed.
Well done.
DJ
SGTJKJ
#041
Visit this Community
Kobenhavn, Denmark
Joined: July 20, 2006
KitMaker: 9,349 posts
Armorama: 4,464 posts
Posted: Tuesday, July 31, 2007 - 05:57 AM GMT+7
Looks very nice so far, Sebastian.

Looking forward to see more - thanks for sharing your work
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, July 31, 2007 - 08:44 AM GMT+7
Ok now the problem start, the bird cage armor, I started with styrene rod 0.3mm diameter but I am running out of it and my LHS sell only cheese so I am in trouble, turn that copper will do a good replacement but it is difficult to strait it, so waiting for my 0.3mm rod

Give me your opinion





Seb
AngryDog
Visit this Community
Singapore / 新加坡
Joined: March 27, 2004
KitMaker: 1,114 posts
Armorama: 900 posts
Posted: Tuesday, July 31, 2007 - 10:21 AM GMT+7
Sebastien,

No need to depend on plastic rod...Just go for any wire with correct diametre.
You can Straighten the wire perfectly :

By using a flat file (I use a smooth jewelers file) start at one end of the wire--position file perpendecular to wire pressing down firmly start "rolling" the wire with forward and backward motion of the file, at the same time move the file along the wire...this will cause the wire to twist slightly thus becoming straight. Works well for short lenghts of wire to be straighten.

For long lenghts of wire, the other method I use is with the help of placing a metal rule(I use 12 inch rule) directly on top and same direction lenght-wise of the lenght of wire ( I use about 24inches maximum) Use both hands-fingers holding down towards the ends of the rule, using quick forward and backward motion of the rule and at the same time moving the rule either to the left of right of the wire.
Take caution that the free lenght of the wire will be spinning as you work--Don't get your eyes poked!

In both methods the wire will be roughen-and it'll also pick up any dirt, dust, dried super glue on your mat-So use a medium grade sand paper to run along the wire to smoothen it, or use your hobby knife for the job-moving the blade in opposite direction of cutting angle as you would by removing seam lines on plastic.

Oh yes, both methods should be done on a cutting mat for the wire to have some grip to the surface and thus "roll" during the straightening process.

Good luck!

Nick
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, July 31, 2007 - 10:48 AM GMT+7
Cool method Nick
i gonna try that tonight

Seb
AngryDog
Visit this Community
Singapore / 新加坡
Joined: March 27, 2004
KitMaker: 1,114 posts
Armorama: 900 posts
Posted: Tuesday, July 31, 2007 - 11:22 AM GMT+7
Hope it works for you...

Forgot to add..I think you can also use a 6 inch rule instead of a file for short lenghts of wire..but I like to use the file since there's a lot of control.
Mech
Visit this Community
Ontario, Canada
Joined: July 20, 2002
KitMaker: 269 posts
Armorama: 214 posts
Posted: Tuesday, July 31, 2007 - 02:22 PM GMT+7
Hi Sebastien

When I want to straighten a 12" to 24" lenght of copper wire, I lock one end in my table wise and the other end with wise grip ( locking pliers ) and pull on it until it is straight., some times it becomes a 1/4 to 3/4 inches longer but straight.

Cheers

Ralph
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Thursday, August 02, 2007 - 12:25 PM GMT+7
So trying to straight the rod was not really succesful and I try to stick to plastic materials due to the fact that I am running out of PS rod, I found a interesting stuff in my house guess what a fishing line of 0.4mm diam right the good dimension. But it is in Nylon, people may argue difficult to glue and work with.

After so tries and test, I was not really happy with the result, so I decide to use a jig for the line in order to speed the process and to have an exact alignment of the line on the panels. So It was compulsory to do all the panel in the same time:

Here is my solution ehehehhe





I used a normal wood panel where I did groove on the edge in order to block the fishing ine spaced by 2.5mm on each side on the wooden panel, then I put the frame:





And apply the fishing on the edge push it onto the groove and repeat the operation16 times.

et voila



You like it it took me 15 min to glue the 16 lines onto the 3 frames,

Bird cage for M113A3 piece of cake
ptruhe
Visit this Community
Texas, United States
Joined: March 05, 2003
KitMaker: 1,978 posts
Armorama: 1,508 posts
Posted: Thursday, August 02, 2007 - 10:04 PM GMT+7
Great idea on the jig and the finished product looks great.

Paul
f1matt
Visit this Community
Manitoba, Canada
Joined: August 13, 2006
KitMaker: 1,021 posts
Armorama: 805 posts
Posted: Friday, August 03, 2007 - 01:24 AM GMT+7
That jig is a great idea. Everything looks nice and straight. Can't wait to see more. Now if I could just finish my Styker, Abrams, King Tiger...
afv_rob
Visit this Community
England - East Anglia, United Kingdom
Joined: October 09, 2005
KitMaker: 2,556 posts
Armorama: 2,199 posts
Posted: Friday, August 03, 2007 - 03:54 AM GMT+7
Wow Seb, thats looking lovely! The second attempt at the slats looks a lot better and much more even. I look forward to seeiing this one complete.

Its seems noone is afraid by slat armor anymore....i still dont think I have the patience or skill to try it, im tempted to try as my LHS has a load of brass rod in thats excellent to work with and would be ideal for this.
PLMP110
Visit this Community
Alabama, United States
Joined: September 26, 2002
KitMaker: 1,318 posts
Armorama: 837 posts
Posted: Friday, August 03, 2007 - 07:46 AM GMT+7
Good work. I saw this 113 at a truck stop. Just a few more shots for you.




HTH

Patrick
Plasticbattle
#003
Visit this Community
Donegal, Ireland
Joined: May 14, 2002
KitMaker: 9,759 posts
Armorama: 7,440 posts
Posted: Friday, August 03, 2007 - 08:03 AM GMT+7
Hi Sebastien. Really inventive work with the slat armor. Looks great. It looks like the corner pieces will be the real test though. Good luck with the rest.
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Friday, August 03, 2007 - 08:08 AM GMT+7
Dear Patrick
Thanks for the pictures really happy to be part of such nice community

@ Franck, now you know why i did start with the side panel

Seb
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Friday, August 10, 2007 - 03:18 AM GMT+7
Well all side panels are finish Please check below, some small corrections need to be done.
I am woring on the front and rear panels, I will keep the curve panels for the last

Comments welcome








ti
Visit this Community
Dalarnas, Sweden
Joined: May 08, 2002
KitMaker: 2,065 posts
Armorama: 1,662 posts
Posted: Friday, August 10, 2007 - 04:17 AM GMT+7
Looking good. Very creative jig you've made as well. I can imagine the difficulty this type of slat armor can have but patience is all that is needed.
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Thursday, March 06, 2008 - 11:23 PM GMT+7
Dear All
I am happy to tell you that this WIP will be back to business soon.
I am currently trying to find a solution for the curved section
Please stay tune
Seb
skeletondude
Visit this Community
Jogeva, Estonia
Joined: September 02, 2007
KitMaker: 129 posts
Armorama: 125 posts
Posted: Sunday, March 23, 2008 - 03:57 AM GMT+7
Hi Seb,
Any progress on this baby? I'm trying to do the same thing with my Academy M113A2.
Cheers
trahe
Visit this Community
Virginia, United States
Joined: April 03, 2006
KitMaker: 1,027 posts
Armorama: 906 posts
Posted: Sunday, March 23, 2008 - 09:25 AM GMT+7
Seb,

Looking great! Great idea using the fishing line and the jig!
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Monday, March 24, 2008 - 12:04 AM GMT+7
Yes I have complete the protection for the rear door
well still not working on the corner parts

I hope to post some pictures soon my camera did not appreciate water bath

Thanks for your comments
Seb
rangered
Visit this Community
Iowa, United States
Joined: April 27, 2006
KitMaker: 25 posts
Armorama: 16 posts
Posted: Thursday, March 27, 2008 - 06:56 AM GMT+7
What did you use for the additional Armor?
