Danish Leopard 2A5DK in Afghanistan
maximus8425
Visit this Community
England - North East, United Kingdom
Joined: May 12, 2006
KitMaker: 309 posts
Armorama: 298 posts
Posted: Sunday, February 03, 2008 - 01:42 AM UTC

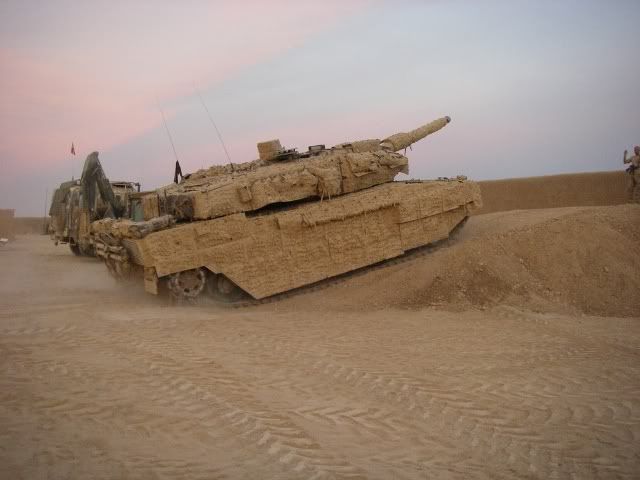

I did a search but didn't come up with anything so sorry if this is a re-post. Anyway here are a few pictures of Danish Leopard 2's in Afghanistan that I found on the net. I think they look so cool with their covering of Barracuda style cam, how fantastic (and difficult) would these be to model (well for me anyway). Anyway hope you like them, some are resized and I have them on my drive so if you want the bigger version .5 MB give me a shout.

Max






sauceman
Visit this Community
Ontario, Canada
Joined: September 28, 2006
KitMaker: 2,672 posts
Armorama: 2,475 posts
Posted: Sunday, February 03, 2008 - 02:48 AM UTC
Interesting pics, that camo could pose a problem for scratch builders.

Maybe some sort of Photo Etch, two pieces, the backing then the cam net?

Or maybe resin like Zimmerit?

cheers
Grindcore
Visit this Community
New York, United States
Joined: September 23, 2006
KitMaker: 383 posts
Armorama: 353 posts
Posted: Sunday, February 03, 2008 - 04:04 AM UTC
I think that Echelon decals is working on the Barracuda netting.
DeskJockey
Visit this Community
Virginia, United States
Joined: July 17, 2006
KitMaker: 1,557 posts
Armorama: 1,158 posts
Posted: Sunday, February 03, 2008 - 04:31 AM UTC
Very interesting pictures. I have to say that the barracuda netting makes these quite unique!
goldenpony
Visit this Community
Zimbabwe
Joined: July 03, 2007
KitMaker: 3,529 posts
Armorama: 588 posts
Posted: Sunday, February 03, 2008 - 04:53 AM UTC
That would be an interesting project. I bet there is somebody out there wondering how to do it as we speak.

f1matt
Visit this Community
Manitoba, Canada
Joined: August 13, 2006
KitMaker: 1,021 posts
Armorama: 805 posts
Posted: Sunday, February 03, 2008 - 04:59 AM UTC
My guess is that photoetch would be the way to go. But it would be very time consuming to take a flat sheet of brass and make thousands of little bends in the camo to bring it to life. A tough detail to replicate but it would look so cool if you could do it. I've seen the Chally II with the same type of camo too.

-Matt
Sudzonic
Visit this Community
Scotland, United Kingdom
Joined: December 07, 2007
KitMaker: 2,096 posts
Armorama: 1,983 posts
Posted: Sunday, February 03, 2008 - 05:43 AM UTC

Quoted Text

That would be an interesting project. I bet there is somebody out there wondering how to do it as we speak.




Funny you should mention it....
yankeearty
Visit this Community
Connecticut, United States
Joined: December 31, 2007
KitMaker: 73 posts
Armorama: 70 posts
Posted: Sunday, February 03, 2008 - 06:01 AM UTC
the kind of camo nets used for covering foxholes and the like could work if made in in scale and painted the right color
SGTJKJ
#041
Visit this Community
Kobenhavn, Denmark
Joined: July 20, 2006
KitMaker: 9,855 posts
Armorama: 4,615 posts
Posted: Sunday, February 03, 2008 - 06:24 AM UTC
That would definently become a challenge. I would make it in tin foil and then stamp the areas into the foil.

Anyway, the main purpose of the sheets are actually not to camouflage, but to reduce heat on the surface of the tank and thereby also inside the tank.

It was tested in Cordoba in Spain before deployment by two tanks. One with the netting and one without. Apparently - and surpricingly at least to me - it works very well and makes a big difference.

Below are some more pictures from the tests in Cordoba, Spain. Including the test team, a very dusty engine and a "clean" shot of the netting.













maximus8425
Visit this Community
England - North East, United Kingdom
Joined: May 12, 2006
KitMaker: 309 posts
Armorama: 298 posts
Posted: Sunday, February 03, 2008 - 06:49 AM UTC
Well for my Str 122 I was thinking of going down this route for the rolled nets on the turret.
http://www.plasticwarfare.se/?p=183
I s'pose it could be used to produce the matting for the wagon. I would assume looking at it that it's a thermal sheet with the net sheets attached. Whatever route you go down it's going to be a long process.
With or without the matting on it's a cool looking wagon in desert cam.

Max
The_Swede
Visit this Community
Jönköping, Sweden
Joined: March 03, 2002
KitMaker: 327 posts
Armorama: 259 posts
Posted: Sunday, February 03, 2008 - 07:30 AM UTC

Quoted Text

Anyway, the main purpose of the sheets are actually not to camouflage, but to reduce heat on the surface of the tank and thereby also inside the tank.


It's also used to reduse the tanks IR signature.

/Thord
CombatKrieg
Visit this Community
Singapore / 新加坡
Joined: January 19, 2008
KitMaker: 517 posts
Armorama: 382 posts
Posted: Sunday, February 03, 2008 - 04:01 PM UTC
Cool stuff... What's the camou thing made of in reality?
LeoCmdr
Visit this Community
Alberta, Canada
Joined: January 19, 2005
KitMaker: 4,067 posts
Armorama: 3,899 posts
Posted: Sunday, February 03, 2008 - 04:56 PM UTC

Quoted Text

Cool stuff... What's the camou thing made of in reality?



Shape shifting tiny elves with little fans.

Just kidding....Google "Saab Barracuda" and you will find info on the internet.....heat reflecting synthetic materials are the key to the system.
DeskJockey
Visit this Community
Virginia, United States
Joined: July 17, 2006
KitMaker: 1,557 posts
Armorama: 1,158 posts
Posted: Monday, February 04, 2008 - 11:42 AM UTC
Max--PM sent regarding my interest in the large image files.
05Sultan
#037
Visit this Community
California, United States
Joined: December 19, 2004
KitMaker: 2,870 posts
Armorama: 1,458 posts
Posted: Monday, February 04, 2008 - 12:48 PM UTC

Quoted Text


Quoted Text

That would be an interesting project. I bet there is somebody out there wondering how to do it as we speak.




Funny you should mention it....



Ditto! hmmmmm.........
Pretty awesome concept,design, and implimentation. The Danes Rock!
Cheers!
CombatKrieg
Visit this Community
Singapore / 新加坡
Joined: January 19, 2008
KitMaker: 517 posts
Armorama: 382 posts
Posted: Thursday, February 14, 2008 - 10:59 PM UTC

Quoted Text


Quoted Text

Cool stuff... What's the camou thing made of in reality?


Shape shifting tiny elves with little fans.


You'll never know!
