----MAZ -537G intemediate type with MAZ/ChMZAP-537G semi-trailer----
Having done the review ..now got to put my money where my mouth was...so here it is
Decided as I need some bench time before the intricate work I would start at the back --ie., the trailer

**I have decided to not use the p-e frets unless it is realy necessary **

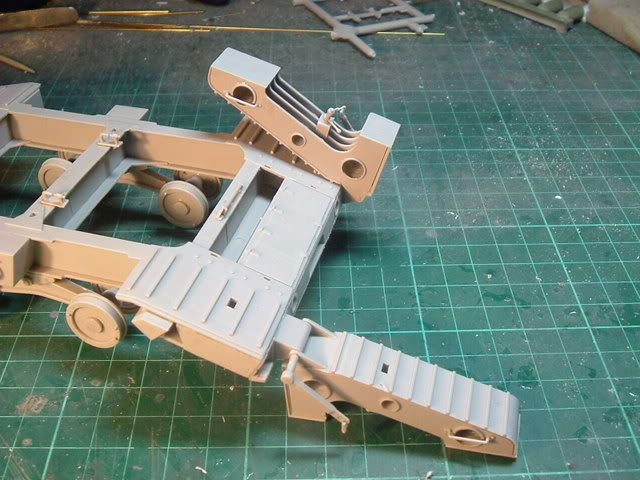

page 20 onwards........"Gooseneck "..."Mainframe"---Frets-J-K-L


No problems here and a straight forward build....may be advisable to put part L28 (under inner top right side )on first first as its fiddly

*NOTE * they only go1 way ----have an angle on top face

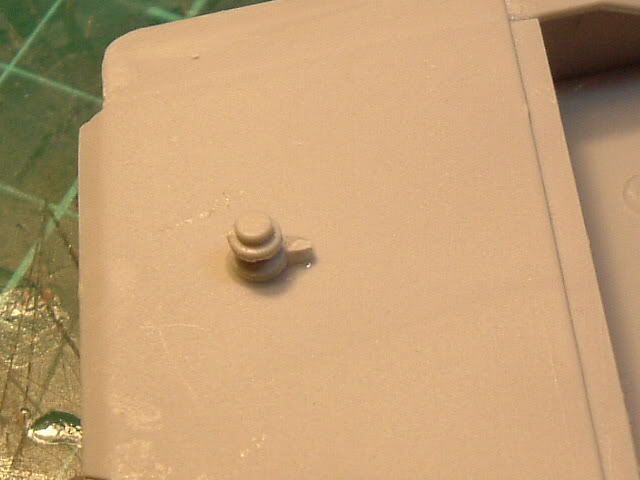

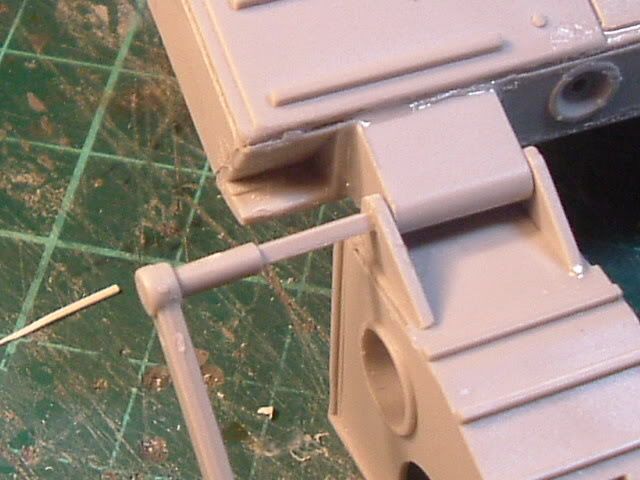

I left the 'spur' on the "PIN" to give it a bit more strength--and eased the slot



The 'pin ' marks I mentioned in the review are not too conspicuous but did give a rub down where they can be picked up..namely on the vertical face inner neck area

Crane and tie-up hooks no problem

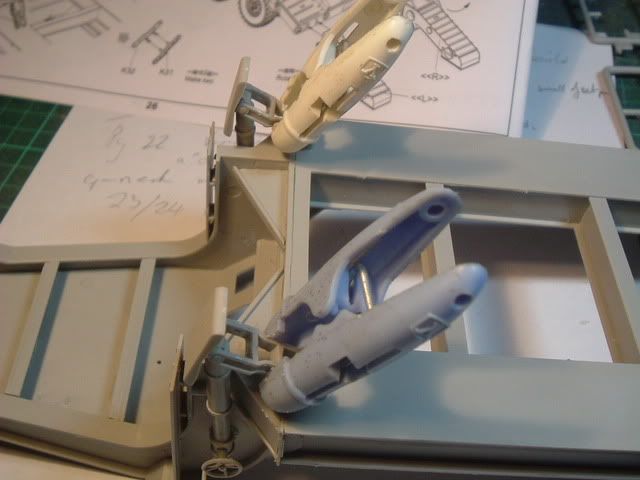

Legs are nice and fit smoothly --I did put a little "gunk" into ease and stop binding when painted

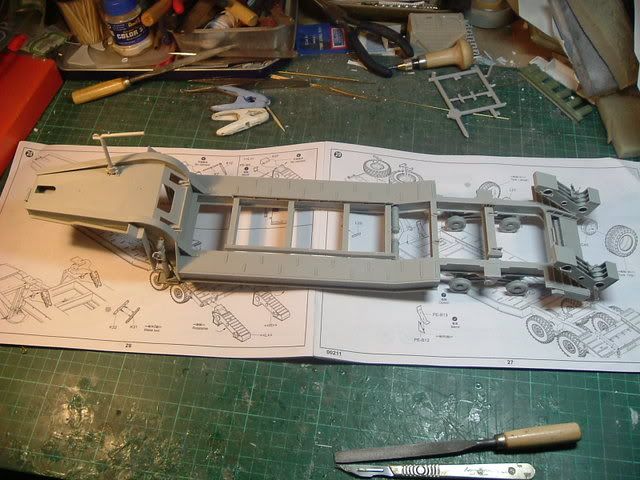

Main frame is straight forward --did smooth out some pin-marks with a light rub on a rib



Wheel stations are neat --pins are a 'push fit' ..gave then a touch of 'gunk '-----not fitting wheels and outer rims till later


Front stays are very fine --used pegs to keepclosed as only small 'pip' axles

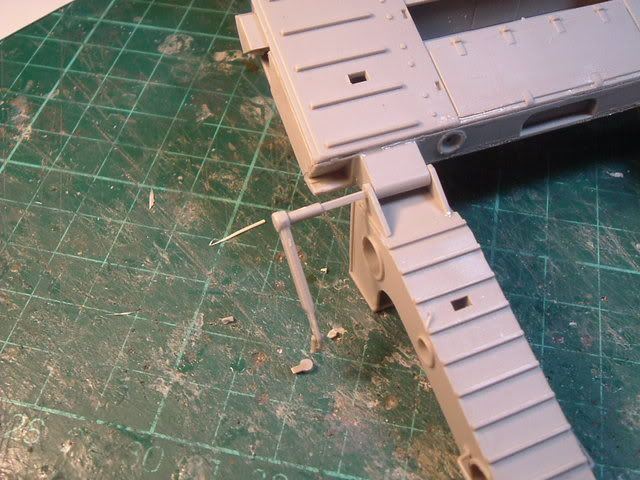

Ramp parts went together nicely ---*NOTE "square drive "needs eased to go through link -- just a scrape --these are 'push fit' and need no glue




Have a few p-e bits to put on --neck and ramps ...but it is basicly all there


Nice and easy fitting ---started just before lunch and withlots of interuptions for coffee -pipe and food -- at this pont 1700

More soon ......
