Ok, so i've just sent my review in for the new Kinetic M-ATV kit and decided to get the blog page up and running (mainly because I needed the link to insert in the review).

This will be a mainly out of the box build of the Kinetic kit, apart from the wheels which will be replaced with items from Def Model. Frankly the kit wheels are unusable.



Updates will follow shortly, hopefully once the review is made public


*See the review here:
jwest21
Visit this Community
Pennsylvania, United States
Joined: October 16, 2006
KitMaker: 3,311 posts
Armorama: 3,065 posts
Posted: Thursday, March 29, 2012 - 07:11 AM UTC
looking forward to seeing this!
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Thursday, March 29, 2012 - 08:06 AM UTC
Good luck Rob
c5flies
Visit this Community
California, United States
Joined: October 21, 2007
KitMaker: 3,684 posts
Armorama: 2,938 posts
Posted: Thursday, March 29, 2012 - 04:27 PM UTC
I'll be following along with great interest Rob as I just started mine too. When I first began building this one I was heard to say "what the &%*#" quite a few times but now I'm really getting into it. I'm awaiting the def wheels too, as replacements are pretty much necessary.
afv_rob
Visit this Community
England - East Anglia, United Kingdom
Joined: October 09, 2005
KitMaker: 2,556 posts
Armorama: 2,199 posts
Posted: Friday, April 06, 2012 - 03:50 AM UTC
Right, finally ready to post some work!

The kit begins with suspension units, which thankfully means getting the tedious stuff out of the way first. Both the front and rear suspension units are made up of parts from sprue F, of which there are two identical sprues, with different parts being used the front and rear units. As I mentioned in the review, theres a fair bit of flash and mold lines on the parts, so a fine scalpel and sanding sticks will be useful.

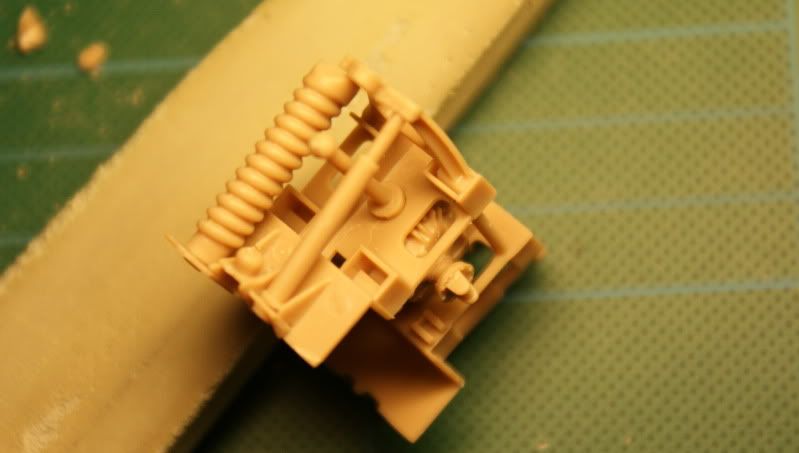

To illustrate what I mean, here's a picture of the spring:

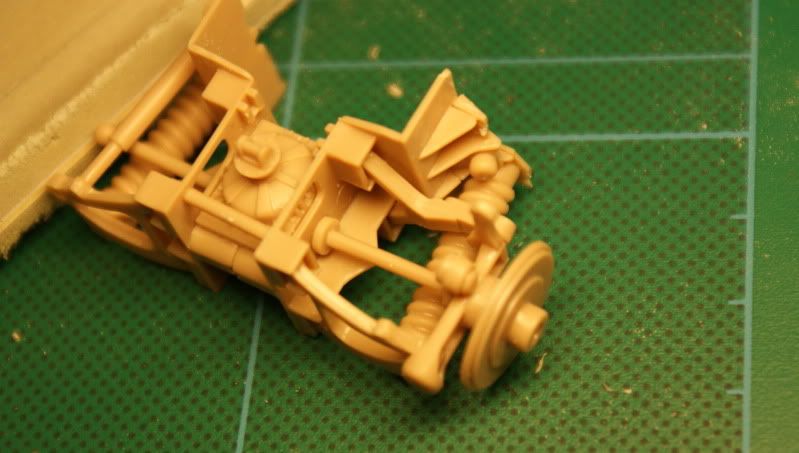

Construction begins with the front unit:
