Only SHERMAN TANKS Build
iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Tuesday, September 17, 2013 - 10:00 AM UTC
Paul and Jeff,

Thanks, it was a lot of fun to build, one of DML's better kits. The casting texture is very good but that DS track never fits.

Irvin
1721Lancers
Visit this Community
England - East Anglia, United Kingdom
Joined: March 21, 2012
KitMaker: 1,673 posts
Armorama: 1,640 posts
Posted: Tuesday, September 17, 2013 - 02:40 AM UTC
Hi Irvin,
thanks for the info, you just saved me some money
thats one resin set that I won't get, not yet anyway

Cool build there, the camo and weathering looks very convincing indeed



Paul
PantherF
Visit this Community
Indiana, United States
Joined: June 10, 2005
KitMaker: 6,188 posts
Armorama: 5,960 posts
Posted: Monday, September 16, 2013 - 11:43 PM UTC
Beautiful Sherman Irvin.





Jeff
iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Monday, September 16, 2013 - 11:37 AM UTC
The End..........





It was a fun build and hope there is another Sherman campaign soon!
iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Monday, September 16, 2013 - 11:34 AM UTC
and................



iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Monday, September 16, 2013 - 11:32 AM UTC
More.............



iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Monday, September 16, 2013 - 11:31 AM UTC

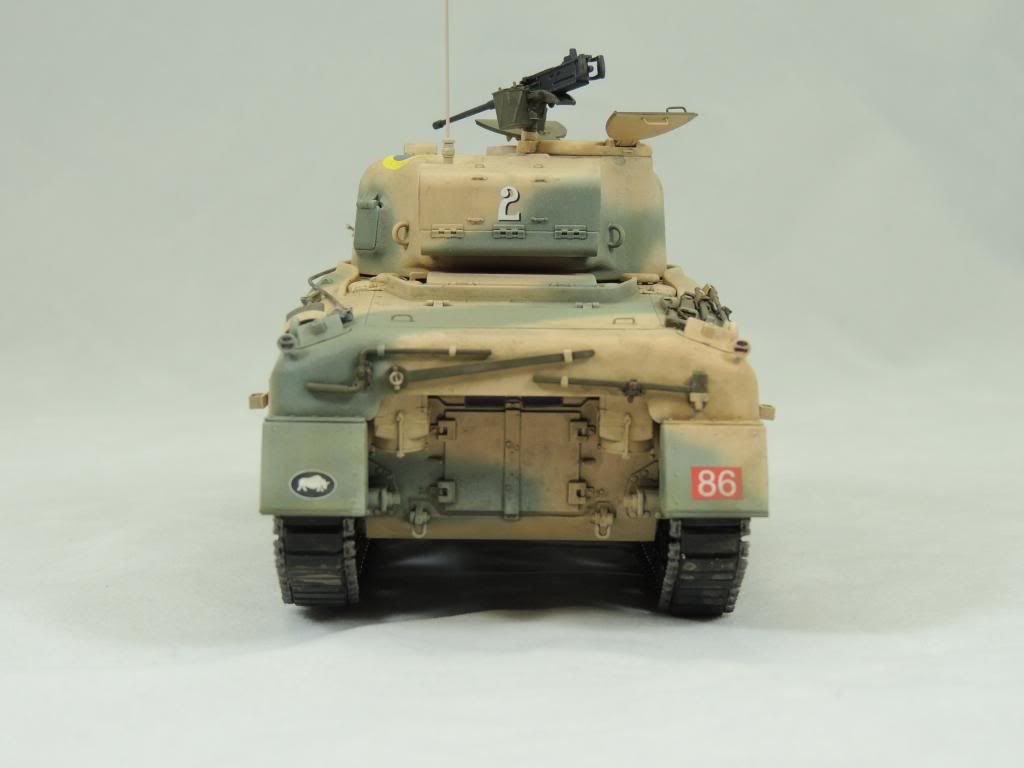

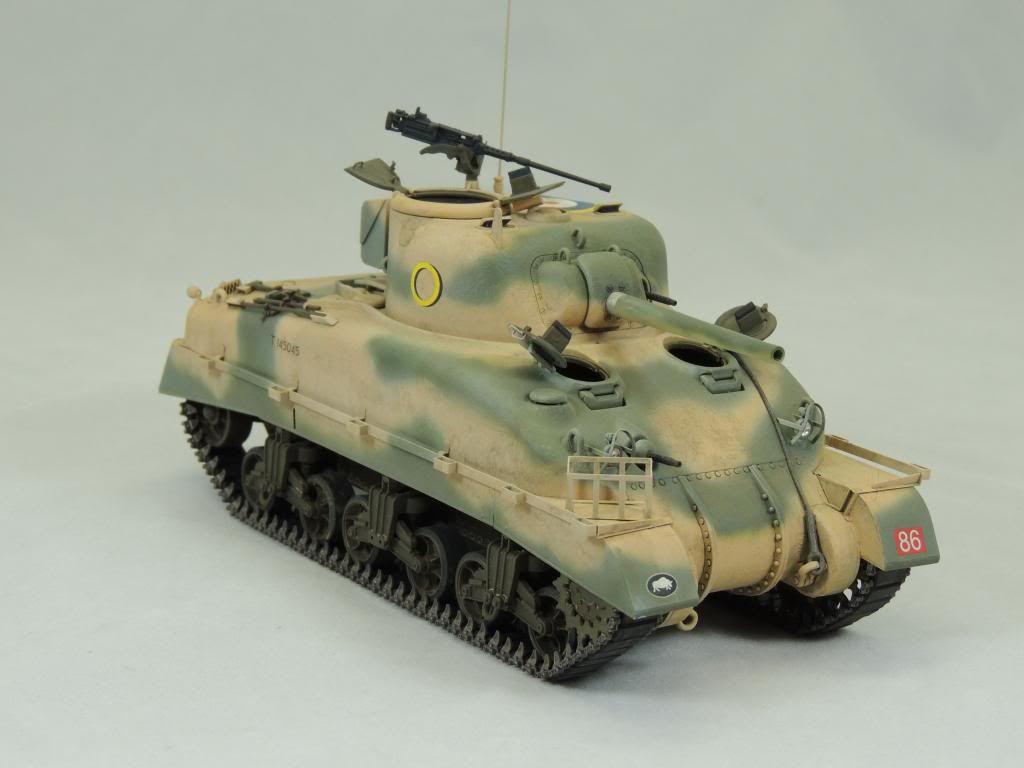

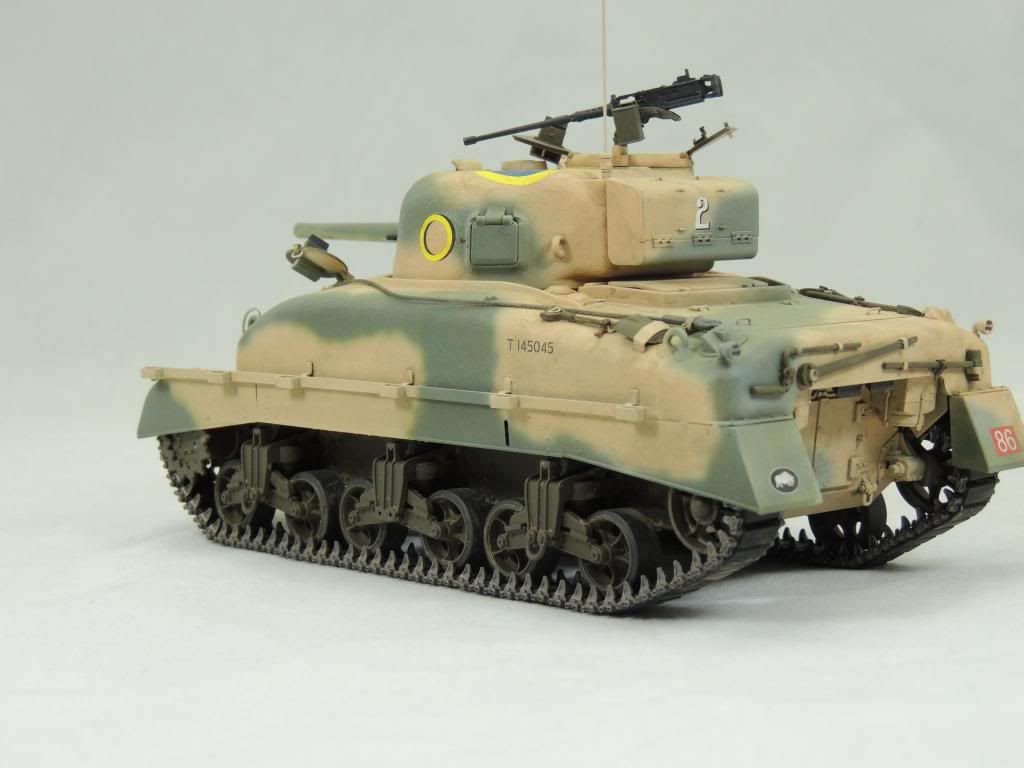

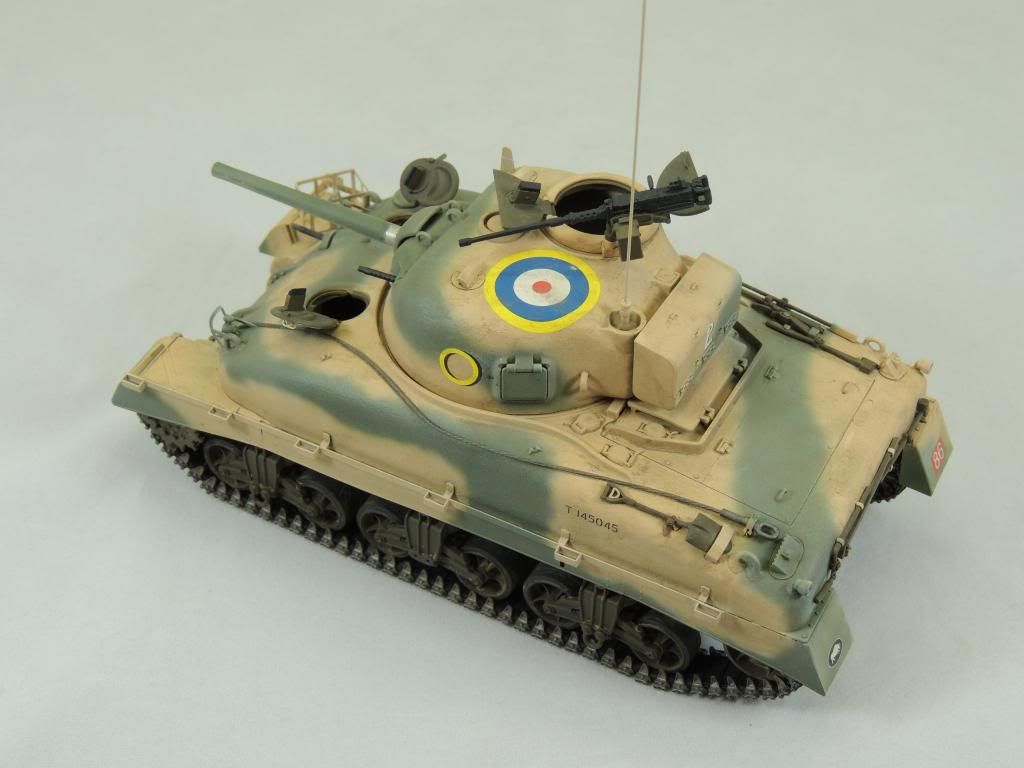

My M4A1 British Sherman II from El Alamin is done!



iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Monday, September 16, 2013 - 11:28 AM UTC
Smash, its works better if you do the yellow first, mask it, then do the OD. Yellow is a very thin color almost transparent, it would take alot to cover the OD hence the bleed through.

Paul, as far as I know I have never seen sandbag armour on any british tanks, I think it was a strictly American practice and against orders. The boggies couldn't take the added weight and it wasnt very effective. I have seen a picture of Geo. Patton balling out a crew for having sandbag armour.
1721Lancers
Visit this Community
England - East Anglia, United Kingdom
Joined: March 21, 2012
KitMaker: 1,673 posts
Armorama: 1,640 posts
Posted: Monday, September 16, 2013 - 04:36 AM UTC
Hi there,
before this thread disappears I have one last question to the Sherman experts out there :-

Was there a sandbag armoured Firefly?






Paul
LtSmash
Visit this Community
Illinois, United States
Joined: August 18, 2011
KitMaker: 34 posts
Armorama: 25 posts
Posted: Saturday, September 14, 2013 - 10:59 AM UTC
Like many U.S. Army Shermans, this tanks paint job is simply olive drab. To add variation to the one-color paint scheme, I decided to try a three-layer method first described by Doogs over at Doogs Models and further promoted by Jon B at The Combat Workshop. Here is how this technique was applied to this Sherman:

I started by priming the model with Vallejo Surface Primer Black. While my photos show the hull, it shoud be noted that everything was painted with black primer but only the hull, turret and main gun would get the three-layer method applied.

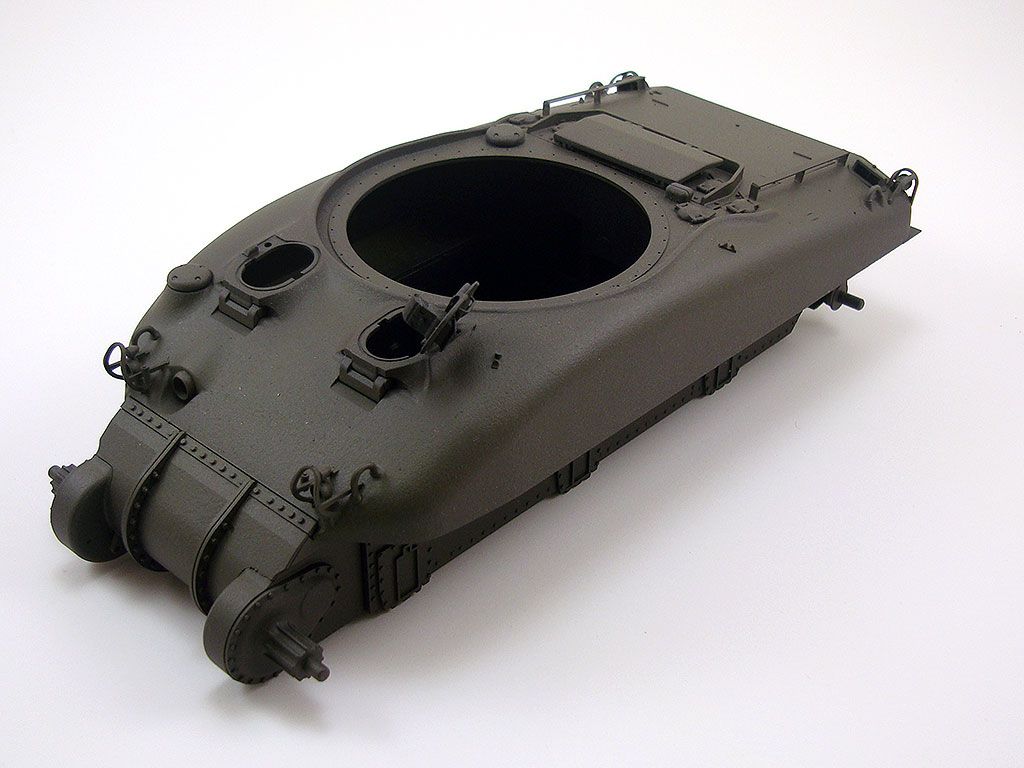

Next, I sprayed white on surfaces which I wanted to highlight. I primarily emphasized the upper surfaces. I used Vallejo Model Color White and ran into a problem with paint splatter. It turns out that the tip of my airbrush needle had gotten bent. When I replaced it, the brush started shooting normally again. Still, when I first saw the splatter, I freaked out but then I realized that it helped emphasize the cast texture of the hull and the turret.



Next, I applied several highly-thinned layers of Vallejo Model Color U.S. Olive Drab. I was a little disappointed with the end result. I did not get the tonal variation that I was looking for and the color itself was much darker than I was expecting.



Rather than strip the model and try again, I decided to provide apply additional tonal variation by airbrushing a lighter color on the horizontal surfaces. Here, I used Vallejo Model Color Brown Violet. Whereas I used a 4:1 thinner to paint ratio for the olive drab, I used an 10:1 ratio for the brown violet. I applied a few coats, each pass covered a little smaller area than the previous. I was effectively building up layers like you do when using acrylics on figures.



The photos still look a bit dark but in real life, Im very happy with the results.

With that behind me, I turned my attention to the turret. The Dixie Belle wore a yellow stripe, along with a yellow star and yellow company identification markings on the turret. Tasca provides decals for the stars and markings but asks you to paint the stripe.

For this stripe, I cut a ~3mm wide piece of tape and carefully wrapped it around the turret where I wanted the stripe to be.



Then, I took 6mm tape and butted it against the 3mm stripe. Once in place, I pulled off the 3mm tape and burnished the wide pieces. Then, I blocked off certain areas of the stripe where decals would be applied.



I wrapped wide blue tape around the 6mm tape to protect exposed areas of the turret. Then, I sprayed Vallejo Model Color Flat Yellow and removed the tape.



I was surprised by the amount of bleeding that I had. Tamiya tape has proved an effective masking tape for me, which is what I used; however, I think I thinned the yellow did come out of the gun runnier than I expected. So, I wont blame the tape.

Nevertheless, Ive simply pulled out the 3mm tape that I used for the stripe, carefully reapplied it over the yellow tape and airbrushed the problem areas with thinned olive drab. The results were very good:



(Yes, there is still a small spot of yellow on the gun mantle but it will be covered by the gun shield once installed.)

Now, its on to final assembly where Ill paint the accessories, add some decals and bring all the pieces together!
iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Tuesday, September 10, 2013 - 01:46 PM UTC

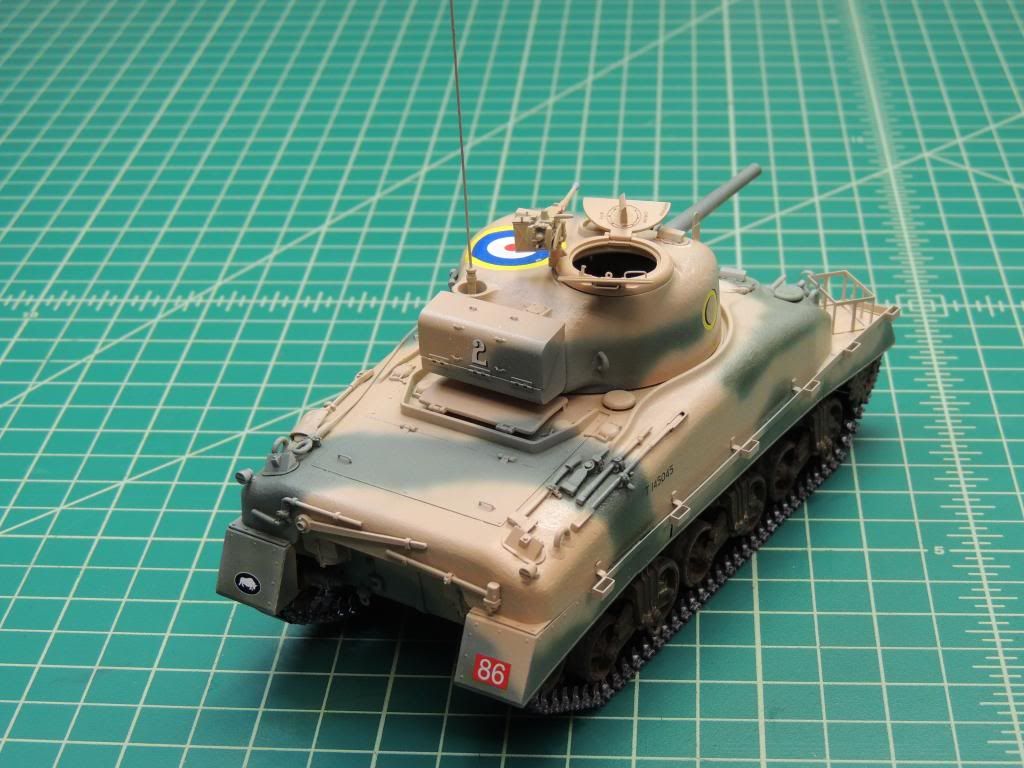

Progress





Dragon164
#226
Visit this Community
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,894 posts
Armorama: 1,054 posts
Posted: Tuesday, September 10, 2013 - 11:54 AM UTC
Well,

I did my best to get this finished, but this is as far as I got and will get for some time.

It was a Great! campaign and I enjoyed it.

Cheers Rob.





Dragon164
#226
Visit this Community
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,894 posts
Armorama: 1,054 posts
Posted: Wednesday, September 04, 2013 - 01:18 AM UTC
Still working away at my M32B3
Ran into some unexpected issues due to using the M3A3 hull, had to fit some interior items in through the turret ring then I fixed the weld beads on the hull with stretched sprue using my favorite tool for this the Mission Models round chisel. then some grab handles were made some guards thinned and some from the spares box added,there was still a fair amount of parts cleaning left and a few holes that needed drilling but I think I can add pait in the morning before I go to work.

Cheers Rob.






Milites-Christi
Visit this Community
California, United States
Joined: October 26, 2008
KitMaker: 28 posts
Armorama: 27 posts
Posted: Saturday, August 31, 2013 - 05:49 AM UTC
Finally!! Thank you for an awesome campaign. I have more question now than i did before the start! Here it is!

1721Lancers
Visit this Community
England - East Anglia, United Kingdom
Joined: March 21, 2012
KitMaker: 1,673 posts
Armorama: 1,640 posts
Posted: Saturday, August 31, 2013 - 03:57 AM UTC
Jeff cool idea and a cool campaign, thanks

John thanks for the ribbon



Paul
iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Friday, August 30, 2013 - 11:59 AM UTC
more





iakarch
Visit this Community
Louisiana, United States
Joined: May 19, 2007
KitMaker: 459 posts
Armorama: 421 posts
Posted: Friday, August 30, 2013 - 11:58 AM UTC

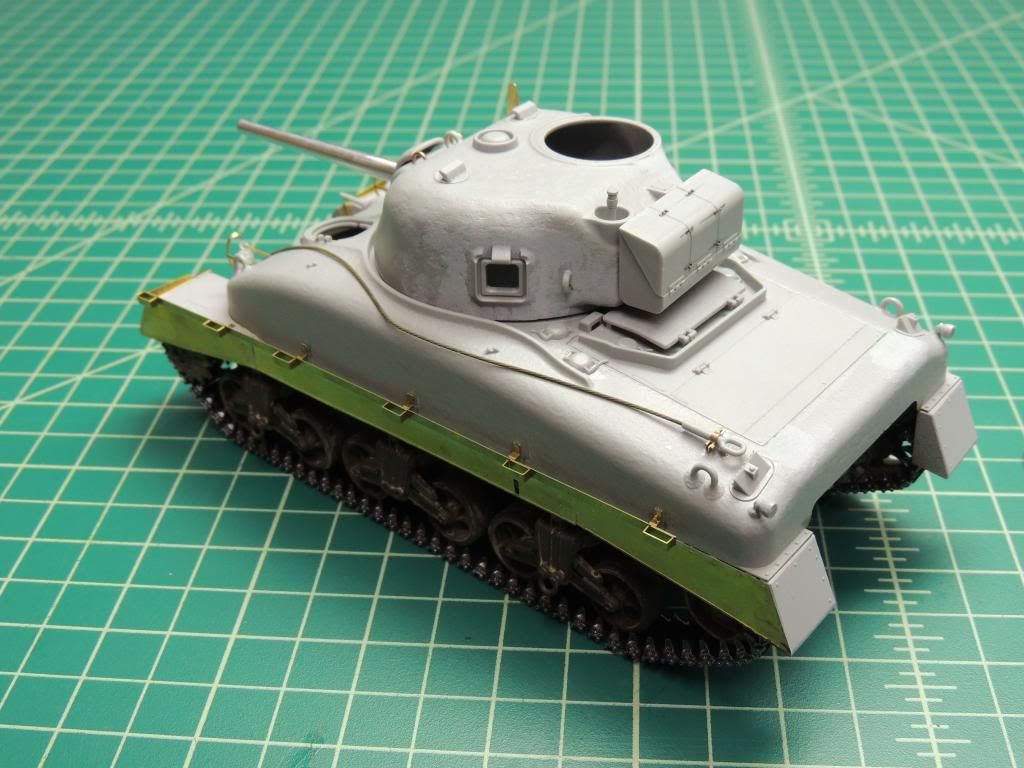

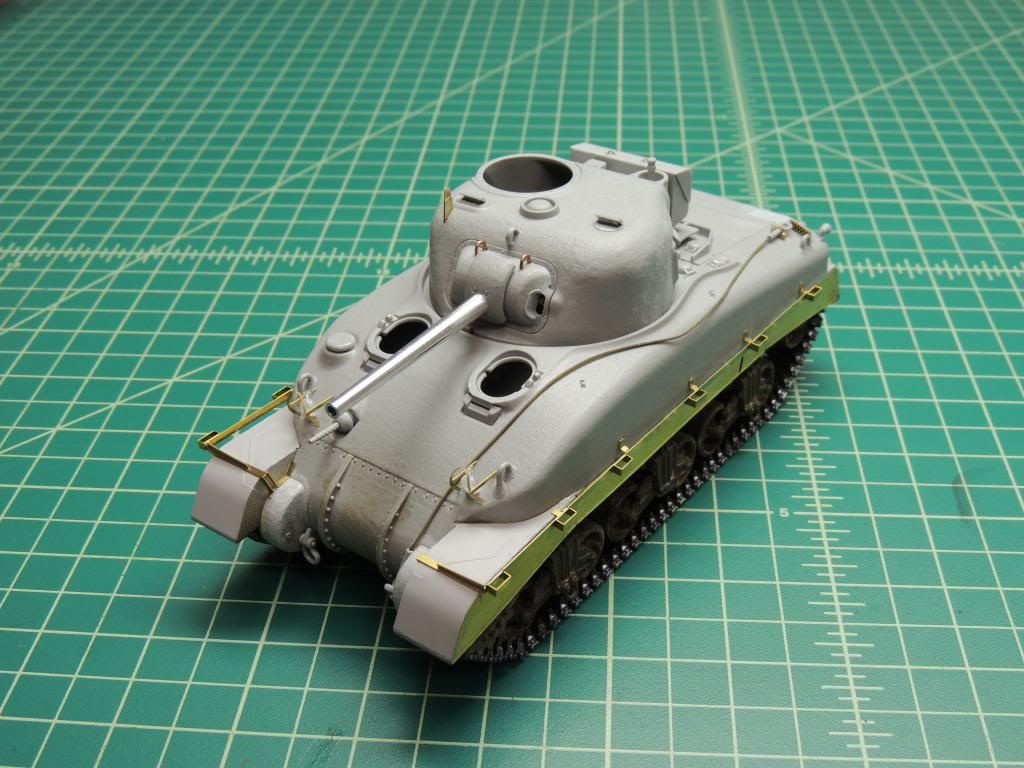

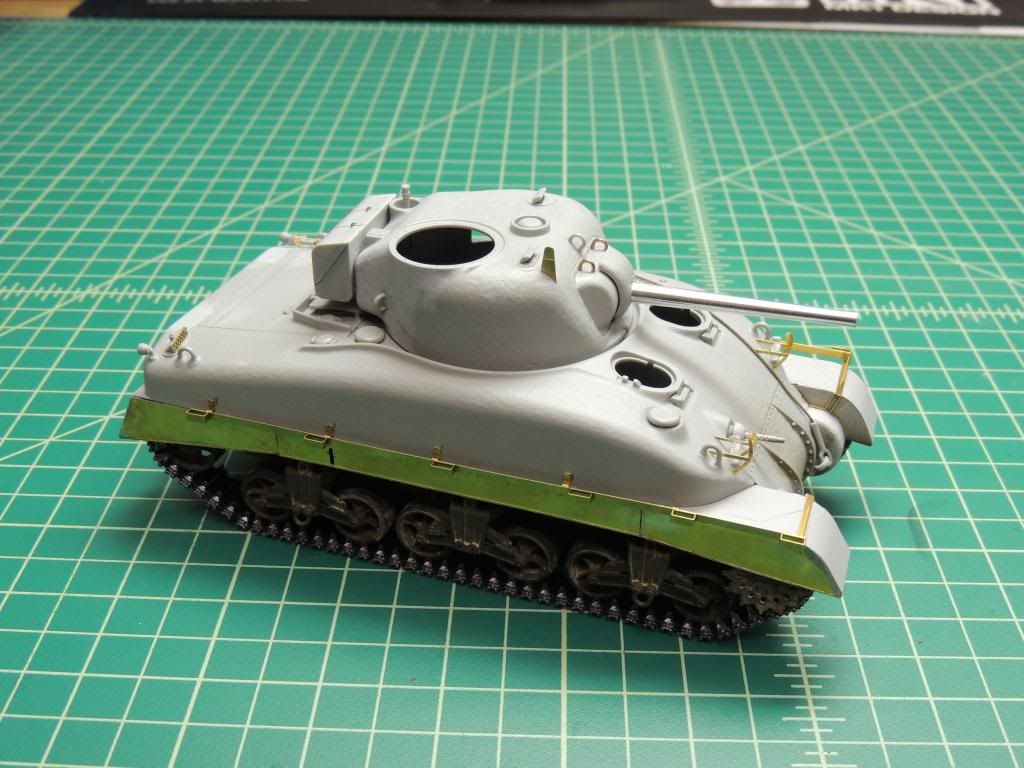

Ready for paint





Dragon164
#226
Visit this Community
British Columbia, Canada
Joined: February 20, 2012
KitMaker: 1,894 posts
Armorama: 1,054 posts
Posted: Friday, August 30, 2013 - 09:57 AM UTC
John,
I will probably not finish before the 4th new work schedule and such.

Cheers Rob.
Nito74
Visit this Community
Lisboa, Portugal
Joined: March 04, 2008
KitMaker: 5,379 posts
Armorama: 4,721 posts
Posted: Friday, August 30, 2013 - 09:50 AM UTC
Ok.

LapMan & Jose ribbons sent !!

Great builds guys !!!!
eMan
#298
Visit this Community
Hong Kong S.A.R. / 繁體
Joined: August 08, 2002
KitMaker: 1,138 posts
Armorama: 653 posts
Posted: Thursday, August 29, 2013 - 06:54 PM UTC
Late submit, El Alamein sherman finished.



PanzerGeek
Visit this Community
Alberta, Canada
Joined: February 10, 2008
KitMaker: 214 posts
Armorama: 210 posts
Posted: Thursday, August 29, 2013 - 04:27 PM UTC

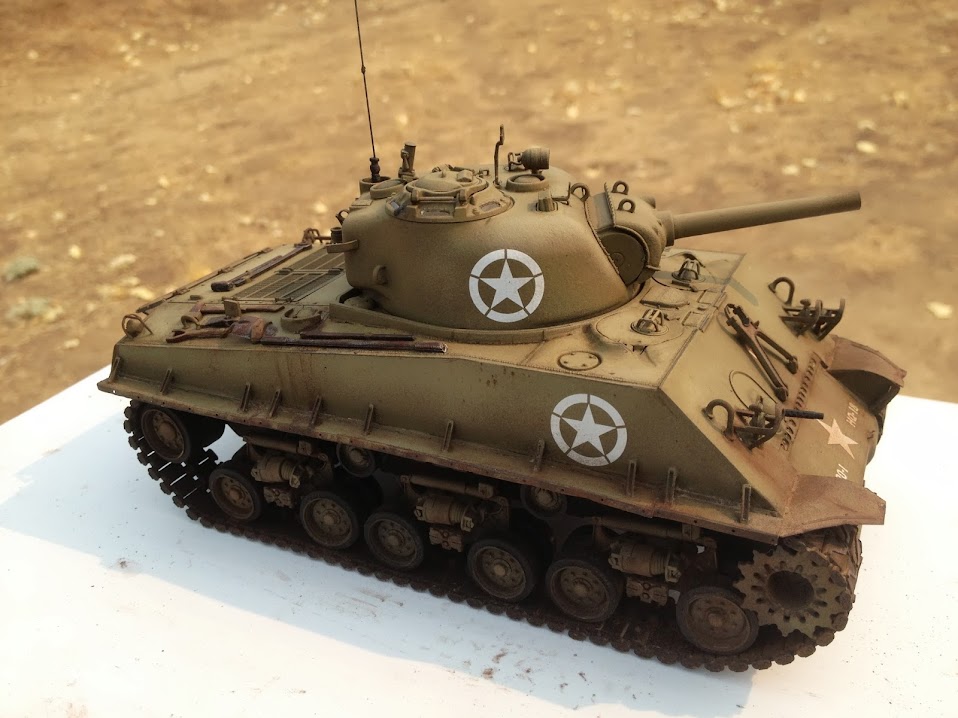

John and Jeff thanks for an awesome campaign. I totally enjoyed it, so many excellent Shermans.

Cheers

Todd
terrybarrett
Visit this Community
North Carolina, United States
Joined: November 20, 2010
KitMaker: 195 posts
Armorama: 180 posts
Posted: Thursday, August 29, 2013 - 04:25 PM UTC
Hey Jeff & John!

I just got around to uploading some pics of my M32 to the gallery. Hope it's not too late for the ribbon!

Thanks for running such a cool campaign!

Terry
Bluestab
Visit this Community
South Carolina, United States
Joined: December 03, 2009
KitMaker: 2,157 posts
Armorama: 1,906 posts
Posted: Thursday, August 29, 2013 - 03:58 PM UTC
Thanks John and Jeff for the campaign.
D_J_W
Visit this Community
Hamilton, New Zealand
Joined: December 30, 2005
KitMaker: 436 posts
Armorama: 367 posts
Posted: Thursday, August 29, 2013 - 03:38 PM UTC
Many thanks John for the great campaign Nice to see so many different Shermans.

Cheers
David
PanzerGeek
Visit this Community
Alberta, Canada
Joined: February 10, 2008
KitMaker: 214 posts
Armorama: 210 posts
Posted: Thursday, August 29, 2013 - 03:21 PM UTC
Thanks Guy. I'm really chaffed at the way the kit came out. I have practised the wood grain on the tools for some time and have finally got it to were I like the look of it. Just keep practising.

Cheers

Todd
