WIP OOB M1083
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Sunday, September 02, 2012 - 07:35 AM UTC
Well Well Well
After more than 3 year, finally the LMTV/FMTV familly is starting to grow again.
Thanks to Trumpeter to send me again those kits for review purpose.

I had the chance to review and build the M1078.
Same here, a review will be publish soon.

I didnot resist starting the build right away. It will be OOB for clarity. I will make a better detailed one after

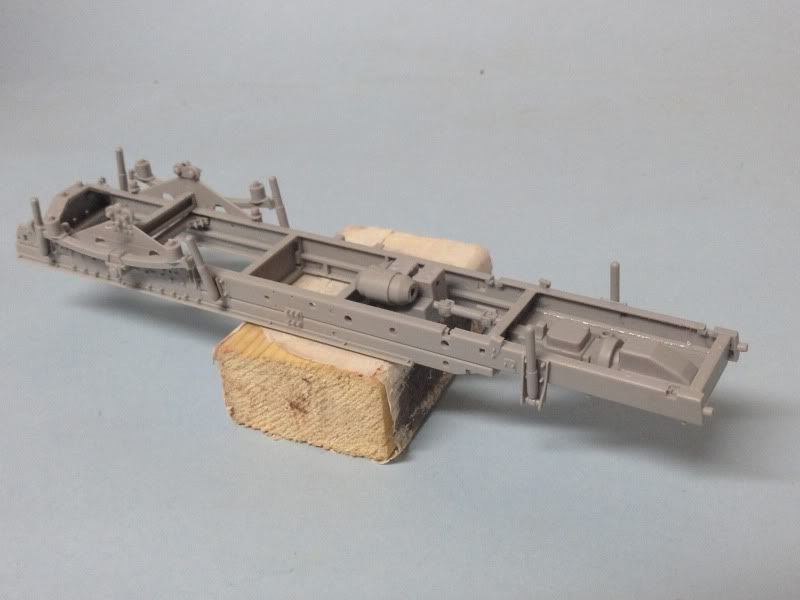

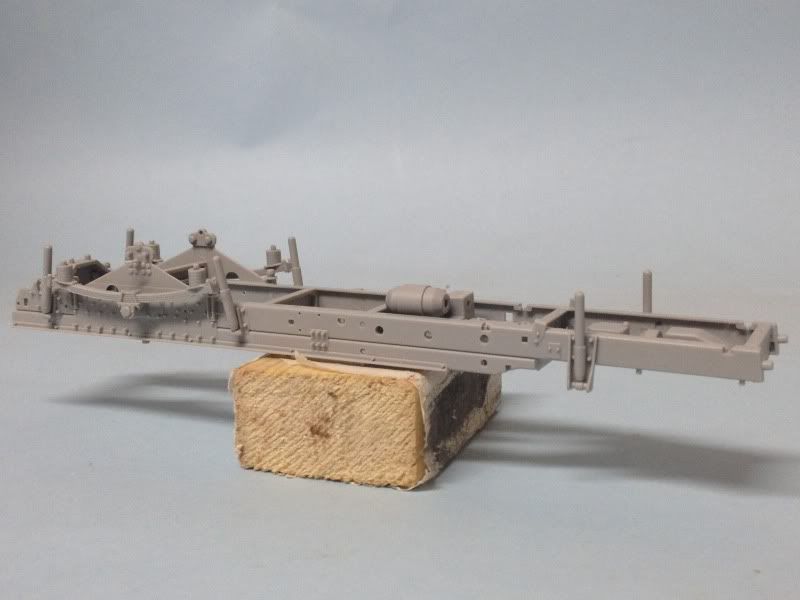

Step 1: Chassis no think special here, no engine







Enjoy and comments welcome

Cheers
Seb
bat-213
Visit this Community
Canada
Joined: December 30, 2011
KitMaker: 902 posts
Armorama: 788 posts
Posted: Sunday, September 02, 2012 - 08:31 AM UTC
you are of to a good start .
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,644 posts
Armorama: 13,702 posts
Posted: Sunday, September 02, 2012 - 08:57 AM UTC
Nice so far. Mine is in the mail. Too bad they didn't correct any of the issues from the M1078 kit (spare wheel w/o bolts for the two-piece wheel, molded closed doors w/o interior details, etc.). I guess Pro Art will be getting another order soon.
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Monday, September 03, 2012 - 06:54 PM UTC
Step 2 and 3

There is an error on the location of the exhaust pipe onto the chassis.

Enjoy






pascalbausset
Visit this Community
Moselle, France
Joined: February 05, 2002
KitMaker: 1,416 posts
Armorama: 1,379 posts
Posted: Monday, September 03, 2012 - 11:30 PM UTC
Thanks Seb, for the heads up, but wich is the right position ,1&2nd pics or 3rd ?
TIA
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, September 04, 2012 - 12:42 AM UTC
Pascal
the last pics show the right position.
On the instruction, it is show to glue on the forward half circle hole, it should be on the rear one.

Cheers
seb
redleg12
Visit this Community
New Jersey, United States
Joined: March 11, 2007
KitMaker: 872 posts
Armorama: 831 posts
Posted: Tuesday, September 04, 2012 - 01:31 PM UTC
Frame is moving well....looking good

Rounds Complete!!
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Wednesday, September 05, 2012 - 12:36 AM UTC
Dear All
There is no walk around on the M1083 on prime portal.
I may find more flaw but I need ref pics.
Can you tell me where I can find a good walkaround

Thanks in advance
Seb
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Monday, September 10, 2012 - 10:44 AM UTC
So chassis is done

Next step paint booth

enjoy























As you can see on picture #11, there are 2 big plugs for gluing the support for the mudflaps for the M1078. I am strongly doubting that these pieces are present on the vehicle.

Moreover, you can notice two armor plates, one on the fuel tank and one on the airtank. Ralph Zwillig post on his FB account picture of M1083 without this at least on the fuel tank.
Is this a common feature from the M1083.

I dont find good ref pics of those details

Cheers
seb
bat-213
Visit this Community
Canada
Joined: December 30, 2011
KitMaker: 902 posts
Armorama: 788 posts
Posted: Monday, September 10, 2012 - 04:28 PM UTC
i think you are of to a great start,great build so far.
amoz02t
#192
Visit this Community
Kentucky, United States
Joined: November 25, 2009
KitMaker: 1,363 posts
Armorama: 1,262 posts
Posted: Monday, September 10, 2012 - 10:46 PM UTC
Hi Seb. Looking good so far! I was guessing you had already seen these photos of the up armored version here? http://gallery.kitmaker.net/showgallery.php/cat/27544?

Keep up the great progress and thanks for sharing. Following this one closely.
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Monday, September 10, 2012 - 11:42 PM UTC
Thanks for the photos
Never seen this version before

retiredyank
Visit this Community
Arkansas, United States
Joined: June 29, 2009
KitMaker: 11,610 posts
Armorama: 7,843 posts
Posted: Tuesday, September 11, 2012 - 08:39 AM UTC
Some very nice work Seb. Where did you find the M1083? I have done a couple of searches, including Ebay and have come up empty handed.
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,644 posts
Armorama: 13,702 posts
Posted: Tuesday, September 11, 2012 - 12:56 PM UTC
3 on eBay right now.

M1083

Sprue Brothers has it too.

It's been out in England for about a month now. Mine is on its way and should be here any day now. Can't wait to get it.
mother
Visit this Community
New York, United States
Joined: January 29, 2004
KitMaker: 3,836 posts
Armorama: 1,370 posts
Posted: Tuesday, September 11, 2012 - 03:48 PM UTC
Looks great Seb...will you be doing a three tone NATO or Sand color. As to the kit I'v had mine now two weeks, bought it from Section 8 Hobbies. I will say that this place will get your needs fast! They do phone orders 716-824-1049.
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 12,682 posts
Armorama: 12,470 posts
Posted: Tuesday, September 11, 2012 - 05:16 PM UTC

Quoted Text

Can you tell me where I can find a good walkaround



What about this one ?

http://news.webshots.com/album/565076408xBLuQh

HTH

Frenchy
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, September 11, 2012 - 06:00 PM UTC
Thanks Guys for your comments
The kit is available here since a month. Blast model have it

It will be a 3 ton NATO camo.
@Frenchy thanks for the link

It seems that the flat bed is not NATO green as show by Trumpeter but it is camo. Is this correct???
And regarding the armor plates on air tank and fuel tank, it seems that it is pure imagination

Cheers
Seb
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 12,682 posts
Armorama: 12,470 posts
Posted: Tuesday, September 11, 2012 - 07:53 PM UTC

Quoted Text

It seems that the flat bed is not NATO green as show by Trumpeter but it is camo. Is this correct???



At least it is the way earlier trucks are painted...

http://automotiveaccessories.tpub.com/TB-43-0209/TB-43-02090129.htm

Frenchy
pascalbausset
Visit this Community
Moselle, France
Joined: February 05, 2002
KitMaker: 1,416 posts
Armorama: 1,379 posts
Posted: Tuesday, September 11, 2012 - 08:09 PM UTC
Here is a pic with the tank armor plate :



But it ,surely, is part of the CPK or armored cab kit
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, September 11, 2012 - 09:33 PM UTC
So good news bad news
Good new the up armored is not a dream
Bad new if you build the non armored version you don't need to glue those plate.

So tonight surgery to remove them

Thanks to all
Seb
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,644 posts
Armorama: 13,702 posts
Posted: Tuesday, September 11, 2012 - 09:47 PM UTC
Good news. I saw the plate and wondered if it was part of the "hopefully" forthcoming armored cab version. Can't wait for the armored one too.
seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Tuesday, September 11, 2012 - 11:34 PM UTC
Gino
Just to be exact, these plates are CPK features, and that doesnot mean Trumpeter will release soon the armored version for both M1078 and M1083.

They allready promote them at Nuremberg Faire in 2010(If i recall correctly).
But since they took more than 3 years between the M1078 and the M1083 who knows.

If sales of the M1083 are good, i am sure they will release them.

And don't forget the MRTV

Cheers
Seb
HeavyArty
Visit this Community
Florida, United States
Joined: May 16, 2002
KitMaker: 17,644 posts
Armorama: 13,702 posts
Posted: Friday, September 28, 2012 - 07:12 AM UTC
Also, I just noticed the armored panel on the driver's side over the battery box and air tanks. It shouldn't be there on the unarmored version either.



seb43
Visit this Community
Paris, France
Joined: August 30, 2005
KitMaker: 2,315 posts
Armorama: 2,158 posts
Posted: Friday, September 28, 2012 - 06:05 PM UTC
Gino
Thanks all armored plates have been removed

I painted it I should take pictures

Cheers
Seb
Herchealer
Visit this Community
Indiana, United States
Joined: July 31, 2003
KitMaker: 1,523 posts
Armorama: 710 posts
Posted: Saturday, September 29, 2012 - 12:17 AM UTC
Looks good. I hope the armored versions are quick to follow from trumpeter!


J
