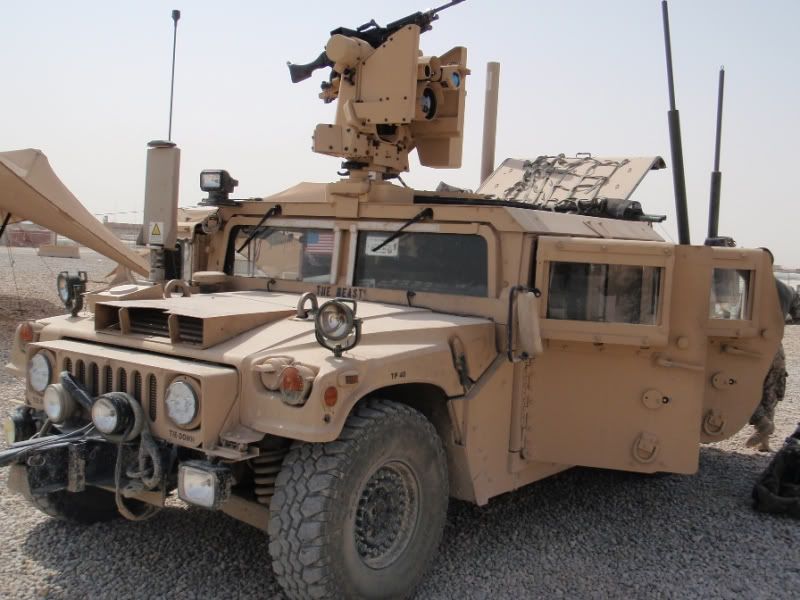

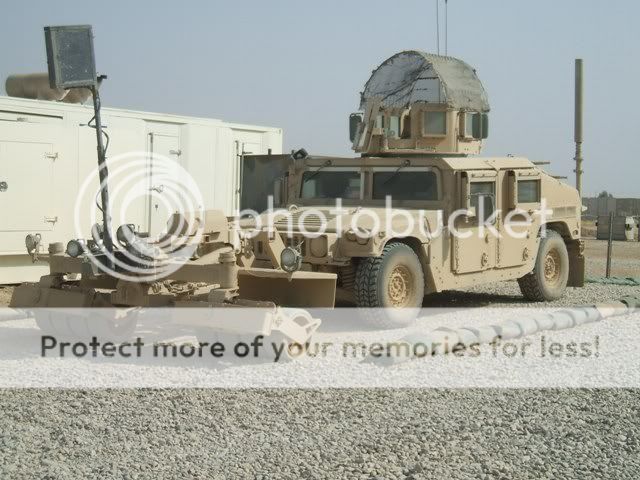

I want to build a model mentioned in the topic's title, it will be a mix of vehicles from photos below:

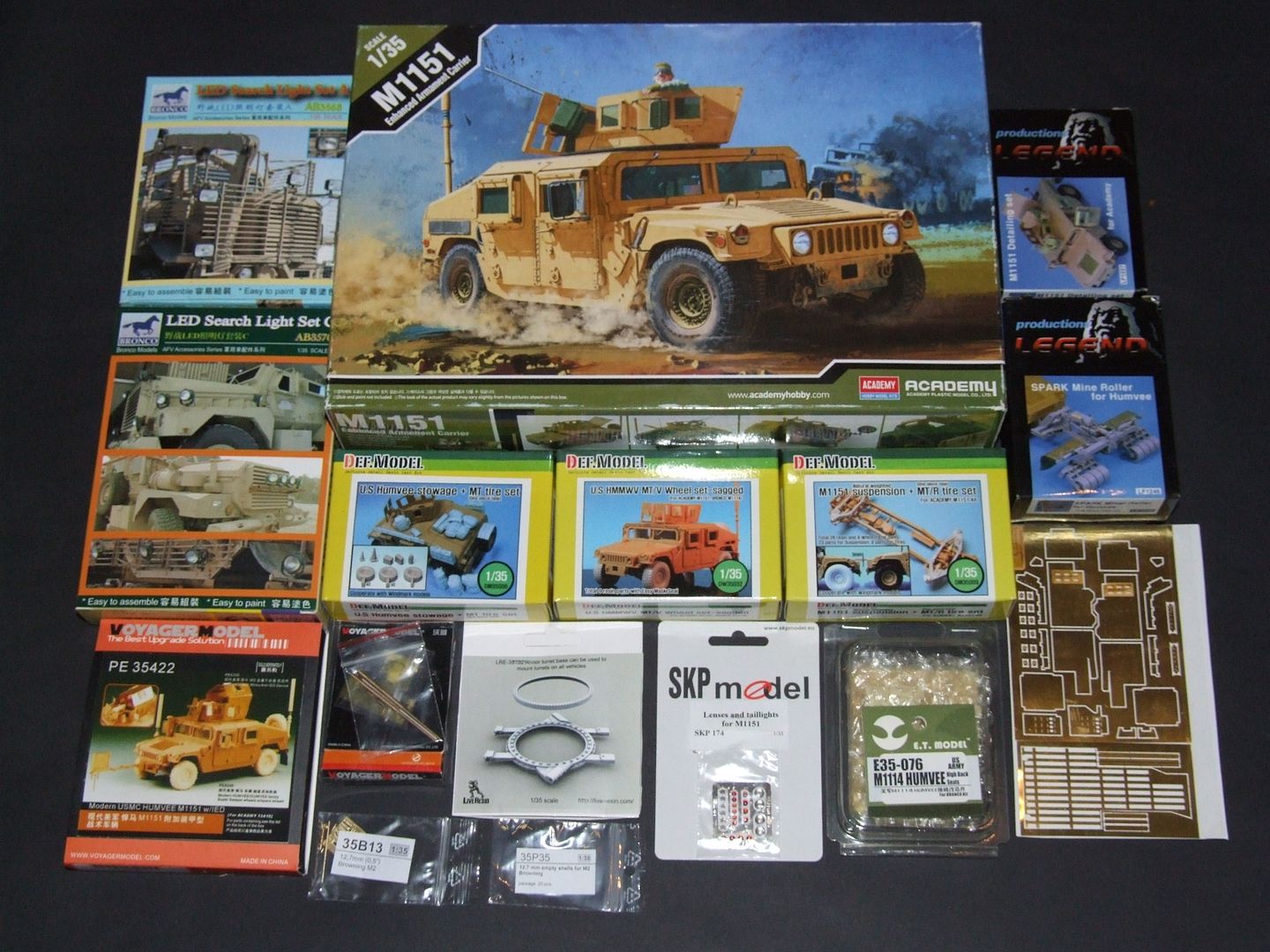

Start-up set:

- base: Academy (13415) M1151 Enhanced Capacity Armament Carrier,
- wheels: DEF Model (DW35032) US HMMWV MT/V Wheel Set Sagged,
- lowered suspension: Def Model (DM35009) M1151 Suspension + MT/R tire set,
- seats: ET Model (E35-076) US ARMY M1114 HUMVEE High Back Seats,
- valorisation 1: Voyager (PE35422) Modern USMC HUMVEE M1151 w/IED,
- valorisation 2: Legend (LF1227) M1151 Detailing set,
- turret base: Live Resin (LRE35152) Armor turret base for all vehicles,
- lenses and lights: SKP Model (SKP174) Lenses and tailights for M1151,
- SPARK: Legend (LF1246) SPARK Mine Roller For Humvee,
- radio antennas: Voyager (PEA252) Modern US VHF/UHF High Power Broadband Vehicle Antennas,
- stowage: DEF Model (DM35008) US Humvee Stowage + MT tire set,
- spotlights: Bronco (AB3568) LED Search Light Set A oraz Bronco (AB3570) LED Search Light Set C,
- M2 valorisation: RB Model (35B13) 12,7mm (0,5") Browning M2,
- shells for M2: RB Model (35P35) 0.5 inch empty shells for M2 Browning,
- underbody armor: PE set made by a colleague.

In addiction some elements taken from here and there:
- CROWS II, engine hood, front grill and rear bumper with spare wheel mount: from Bronco (CB35136) M1114 Up-Armoured Vehicle w/XM153 CROWS II,
- Rhino and old-type Duke antenna: from Bronco (CB35092) M1114 Up-armored HA (Heavy) Tactical Vehicle,
- new-type Duke antenna: z modelu Panda Hobby (PH-35001) M-ATV MRAP,
- AN/VRC-110 radio and Duke steering box: from Pro Art Models (PAU-35055) US MRAP Radio set,
- jerry cans: Pro Art Models (PAU-35047) Jerry Can Set For Modern Vehicles.
sgtsauer
#065
Visit this Community
Missouri, United States
Joined: March 30, 2002
KitMaker: 2,605 posts
Armorama: 1,814 posts
Posted: Friday, April 10, 2015 - 09:50 PM UTC
Wow! Thats a lot of aftermarket to incorporate into one vehicle. I look forward to seeing this progress.
35th-scale
Visit this Community
Kildare, Ireland
Joined: November 21, 2007
KitMaker: 3,212 posts
Armorama: 2,807 posts
Posted: Friday, April 10, 2015 - 10:34 PM UTC
With so many AM sets I'm surprised you'll even need the base kit
Will be watching with interest!

Good Luck
GaryKato
Visit this Community
California, United States
Joined: December 06, 2004
KitMaker: 3,694 posts
Armorama: 2,693 posts
Posted: Friday, April 10, 2015 - 10:45 PM UTC
How much is this model going to cost?
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Friday, April 10, 2015 - 11:49 PM UTC
Brent, welcome aboard

Sean, I think I'll use some Academy's parts

Gary, don't ask Nobody knows if my wife's reading Armorama
hliu24
Visit this Community
California, United States
Joined: November 19, 2010
KitMaker: 798 posts
Armorama: 797 posts
Posted: Saturday, April 11, 2015 - 02:53 AM UTC

Quoted Text

How much is this model going to cost?



between $360-400 I guess if you add up the m1114 pro art and m-a tv

Jay
Kenaicop
#384
Visit this Community
Nevada, United States
Joined: August 23, 2005
KitMaker: 1,426 posts
Armorama: 1,316 posts
Posted: Saturday, April 11, 2015 - 03:15 AM UTC

Quoted Text


Quoted Text

How much is this model going to cost?



between $360-400 I guess if you add up the m1114 pro art and m-a tv

Jay



Dude, you rock!
MakiWawa
Visit this Community
Warszawa, Poland
Joined: December 17, 2014
KitMaker: 448 posts
Armorama: 448 posts
Posted: Saturday, April 11, 2015 - 11:02 AM UTC
Eeee...it cost less 1000-1200 PLN= 250-300$
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Monday, May 04, 2015 - 08:22 PM UTC
Let's get it started...


kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Tuesday, May 05, 2015 - 07:03 PM UTC
Rear bumper added, also start of working on bottom of the body:





hliu24
Visit this Community
California, United States
Joined: November 19, 2010
KitMaker: 798 posts
Armorama: 797 posts
Posted: Tuesday, May 05, 2015 - 09:04 PM UTC
Very nice, Kuba.

Jay
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Wednesday, May 06, 2015 - 08:42 PM UTC
ks, Jay


Since I've decided, that this M1151 will be on common diorama with M1114, my plans are changed. I won't be replacing the engine hood with Bronco's one, I'll leave it for M1114. Of course I had to do something with Academy's ugly grills. Upper was replaced with PE, in front one I've made holes and glued a PE mesh from inside:



I guess I've succeded in lowering the suspension:




As far as the diorama goes, it will be entitled 'If you see me running, try to keep up'. This is the start-up set:

- Italeri (6521) Road block and U.S. soldiers (4 figures, road blocks, road barrier),
- Master Box 935170) "Man down!" US modern army, Middle East, present day (4 figures),
- Meng Model (HS-003) U.S. EOD Specialists & Robots (EOD specialist in armor suit, Talon robot),
- Alliance Model Works (LW35068) Modern US Uniform Insignia Set (insignias for figures),
- some road signs etc.

This is the plan:

Green circle - EOD specialist, greenish ones - other soldiers, blue line - road sign, thick grey line parrallel to the road - barrier, 2 grey rectangles - road concrete blocks, 3 black small rectangles - Talon robot, a steering unit and a Pelican Case with some EOD stuff. A EOD man will be talking to one of his 'bodyguards', a couple of soldier will be preparing a robot for use, one will be in the M1114's turret, one will be talking to the radio handset, the rest will be watching a terrain around.

Little progress made:












The M1114 from EOD patrol. Based on this photo:

From Concord Publications (7518) 'Iraq insurgency, US Army armored vehicles in action Part 1'. Only seats and wheels done:


Decals:


I don't know, if there was a chance for meeting such two Humvees in the same time (heavily equipped M1151 with all these bells and whistles and barely 'naked' M1114), but this is of secondary importance to me
hliu24
Visit this Community
California, United States
Joined: November 19, 2010
KitMaker: 798 posts
Armorama: 797 posts
Posted: Wednesday, May 06, 2015 - 09:20 PM UTC
hahaha! How about add another m1151 with Spark, leave the crows on your main build just like your reference pictures? then you will have 3 Humvees! you have enough parts to upgrade another m1151 anyway.....the more the merrier

Jay
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Monday, May 11, 2015 - 12:26 AM UTC
Jay - don't tempt me


Figures and weapons:
Cookiescool2
Visit this Community
Georgia, United States
Joined: May 09, 2014
KitMaker: 273 posts
Armorama: 270 posts
Posted: Monday, May 11, 2015 - 02:44 AM UTC
You are very brave, looking forward to the continuation of this project!
sgtsauer
#065
Visit this Community
Missouri, United States
Joined: March 30, 2002
KitMaker: 2,605 posts
Armorama: 1,814 posts
Posted: Monday, May 11, 2015 - 02:58 AM UTC
What a huge project Kuba! Great work so far!
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Monday, May 11, 2015 - 02:19 PM UTC
Alan, Brent - thanks


And I've got an insignia, it will be attached to the diorama's base:
PaulBrickles
Visit this Community
England - East Anglia, United Kingdom
Joined: April 14, 2015
KitMaker: 188 posts
Armorama: 173 posts
Posted: Monday, May 11, 2015 - 03:05 PM UTC
Looking Great and plenty of action.

Paul
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Wednesday, May 13, 2015 - 11:11 AM UTC
Thanks Paul



Winch, rear tailgate, rear wall inside and rear wheel bays panels added:




Roof, engine hood and front window frame dryfitted.
pattesmaq
Visit this Community
Haute-Alpes, France
Joined: June 27, 2012
KitMaker: 80 posts
Armorama: 80 posts
Posted: Wednesday, May 13, 2015 - 01:05 PM UTC
hello
very good build
bye
sgtsauer
#065
Visit this Community
Missouri, United States
Joined: March 30, 2002
KitMaker: 2,605 posts
Armorama: 1,814 posts
Posted: Friday, October 16, 2015 - 12:53 AM UTC
How is this project coming along Kubisz?
kubisz
Visit this Community
Wojewodztwo Slaskie, Poland
Joined: February 18, 2007
KitMaker: 978 posts
Armorama: 977 posts
Posted: Friday, October 16, 2015 - 02:53 AM UTC
Modelling stopped giving me fun, I was struggling with it. So I decided to end with practical part of this hobby. I do not know for how long, maybe this project will never be finished. But I also decided not to sold my stash out and keep it burried deep, so maybe someday in the future I'll return to this. Now I do not have the slightest desire.
