US tank track info....HELP !!!
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Sunday, January 27, 2019 - 09:40 AM UTC
Does anyone have clear photos of the T80E1, T84E1 tracks and how they are constructed? Some write ups talk about steel track, but, in photos it looks just like the solid rubber types. The earlier "steel" track like on the M-26 photos I have are not identified as type of track. I picked up a HB late model Pershing with two sets of tracks. One is clearly a steel set but the other appears to be a rubber track with an exposed steel cleat or just solid rubber. Anyone have info on this or know if there is a book available I can keep on the shelf that shows and identifies the different tracks and what vehicles used them? Stop the madness and clear the air!!!!
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,967 posts
Armorama: 11,762 posts
Posted: Sunday, January 27, 2019 - 10:32 AM UTC
T80E1 :







T81 :





T84E1 :





H.P.
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Sunday, January 27, 2019 - 10:42 AM UTC
Frenchy...appreciate the info. The -84E1 looks like the set with the kit except that there is a cleat shaped like the rubber that stands out from the track. Right now I can only think that the pad is rubber with a steel cleat rather than all rubber.
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,967 posts
Armorama: 11,762 posts
Posted: Sunday, January 27, 2019 - 11:02 AM UTC
What's your kit number ? 82428 ? If so, in the picture below, the tracks on the top are T81 all-steel tracks, and those below them are T80E1 tracks (the T80E1 is a steel-grouser, rubber-backed track) :



H.P.
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Sunday, January 27, 2019 - 02:01 PM UTC
Yes sir, 82428. The bottom tracks are the ones I was wondering about. The only pics I can find are either color with dirt all over them or B and W with no way to tell anything from them. From the mold on the tracks, it looks like the track is rubber with the cleat (grouser?). Is that right or is it just solid steel? Some photos show the cleat as rubbed to a shine like steel and the rest of it black like rubber. I never looked before, but am surprised with the amount of armor info available, even the most obscure, that there isn't a site or book to identify the different tracks and how they are painted. I was only familiar with the solid rubber until this build.
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,967 posts
Armorama: 11,762 posts
Posted: Sunday, January 27, 2019 - 09:14 PM UTC

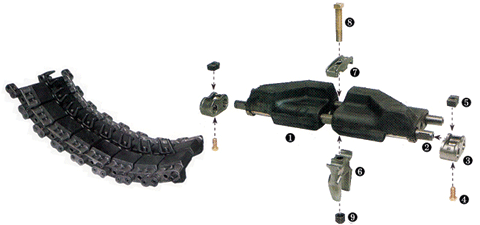

Maybe a drawing would make things clearer (from Bronco T80E1 track set) ?



Parts #A1 are rubber pads
Parts #A3 and A4 are steel grousers

H.P.
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Monday, January 28, 2019 - 01:34 AM UTC
OK, SO THE UPPER, OR PART THAT CONTACTS THE GROUND IS SOLID STEEL, NOT STEEL AND RUBBER AND THE INNER PART IS RUBBER. The track, when new would be what, painted black as well as the connectors?
Frenchy
Visit this Community
Rhone, France
Joined: December 02, 2002
KitMaker: 11,967 posts
Armorama: 11,762 posts
Posted: Monday, January 28, 2019 - 02:15 AM UTC
That's it The track link color is steel grey except the inner rubber pad that is black....

You can see the rusted steel on these similar Sherman T80 tracks



H.P.
RobinNilsson
Staff MemberTOS Moderator
KITMAKER NETWORK
Visit this Community
Stockholm, Sweden
Joined: November 29, 2006
KitMaker: 5,001 posts
Armorama: 4,223 posts
Posted: Monday, January 28, 2019 - 02:43 AM UTC

Black&White photo, hard to tell colours but the track would be gray metal covered with dirt and all surfaces which gets rubbed against the ground or other parts of the suspension would be shiny. The polished chevrons shine in the photo.





These chevrons are not quite so shiny, possibly due to softer ground.



Left immobile for many years so the tracks have rusted
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Monday, January 28, 2019 - 02:52 AM UTC
Frenchy....you are a fount of info!!! I appreciate the help on this. Like I said, I only have contact with rubber tracks. When I was in, all tracks were rubber padded. I did some time on a CEV, the M728 on my second tour, with the 25th Infantry Div, 65th Combat Engineer Bat. in Vietnam. I'll see if I can attach a couple photos on here.
swede82
Visit this Community
Alabama, United States
Joined: October 24, 2013
KitMaker: 119 posts
Armorama: 91 posts
Posted: Monday, January 28, 2019 - 02:53 AM UTC
Robin, great photos...I appreciate them with trying to get this track problem figured out!!!
RobinNilsson
Staff MemberTOS Moderator
KITMAKER NETWORK
Visit this Community
Stockholm, Sweden
Joined: November 29, 2006
KitMaker: 5,001 posts
Armorama: 4,223 posts
Posted: Monday, January 28, 2019 - 03:03 AM UTC

Quoted Text

Robin, great photos...I appreciate them with trying to get this track problem figured out!!!



First of all you need to decide what you tank has been doing lately:
1. Running in soft and wet mud -> dirt all over the place
2. Sitting still for many months -> more or less rusty all over, maybe also dirty
3. Running over ground with sand in it or over hard surfaces -> silver shiny surfaces where the track is rubbed, dirty or clean is optional. Moved around in the motorpool or on streets -> clean and polished. Running in the terrain or on gravel roads -> dirty with polished surfaces.
4. Gate guard or monument somewhere -> depends on how it has been taken care of. left to rust or yearly checkups and paintjob?
5. Museum? See nr 4.

Have fun with the build and post photos for us armchair modelers to critique the h*ll out of
